Blue Sea Systems

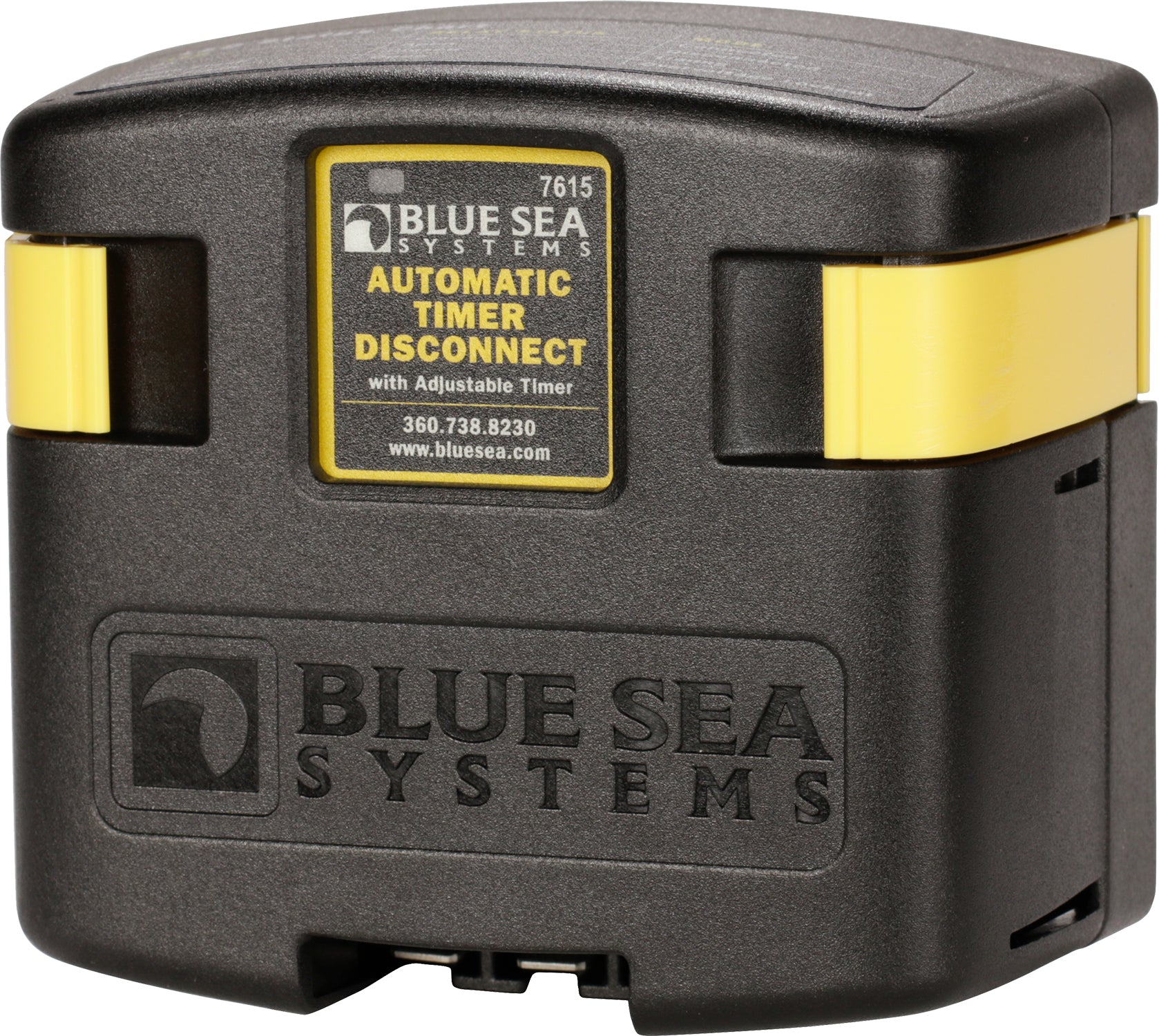

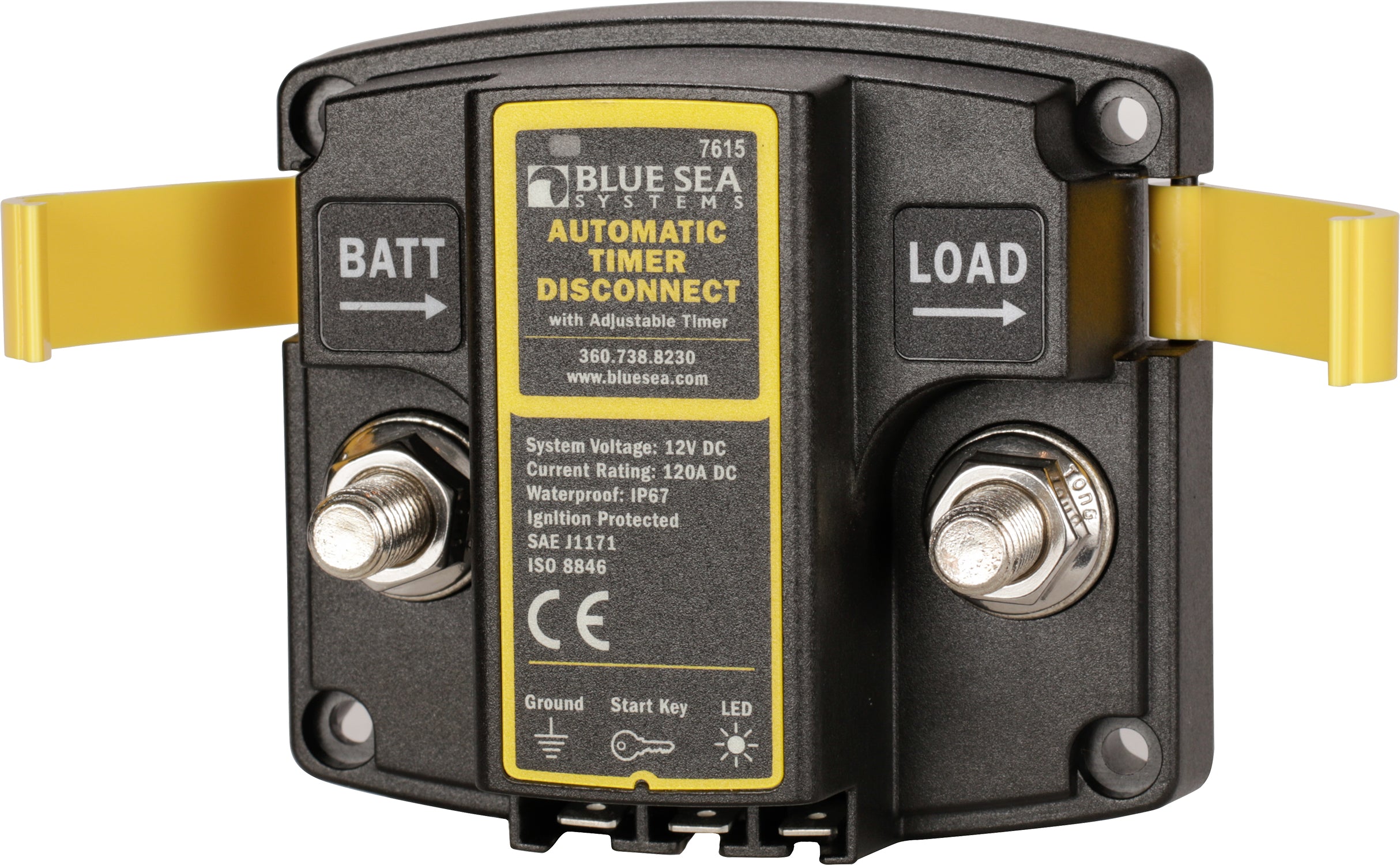

Blue Sea Systems ATD Automatic Timer Disconnect 7615
Quantity:
Pickup currently unavailable at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
Blue Sea Systems ATD Automatic Timer Disconnect 7615
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
Pickup currently unavailable
10091 Central Ave NE
Blaine MN 55434
United States
Fish-Lectronics - 1109 Cty. Rd. 10 - PH# 763.571.1277
Pickup available, usually ready in 24 hours
1109 County Road 10
Minneapolis MN 55432
United States
Can be configured to be used as one of the following battery saving products
Timer Disconnect
Timer Disconnect
- 12V signal triggers relay to connect battery power to devices
- When signal is removed the timer is activated and will disconnect devices after a preset time
- Timer ranges from 15 minutes to 4 hours
- 12V signal triggers relay to connect battery power to devices.
- After 12V signal is removed, device senses low battery voltage and automatically disconnects devices.
- Low voltage setting can be used in conjunction with Timer Disconnect. Low voltage will disconnect devices prior to preset time to preserve battery power
- Automatically combines two batteries when charging, and isolates them when discharging
- Single side sensing design only monitors the voltage of the start battery
- Ideal for auxiliary batteries that are AGM or significantly larger than the start battery
- 12V signal will connect or disconnect relay without any time delay
