Cisco Trolling Motor Stabilizers

Spring Loaded Locking Unit:

Our unique spring loaded mechanism means that you no longer have to worry about aligning pieces and parts to support your trolling motor arm; and this can especially difficult in rough conditions.  Simply lift up on the stainless steel handle and turn it over the arm of the trolling motor and release.  The synthetic V-Channel safely cradles the arm and the thick rubber adhesive on the stainless steel hook protects the trolling arm from scratching while providing a snug fit.

Rail mounting options are also available for use on handrails.  Our thumbscrew rail mount can adapt to fit this stabilizer making it easily removable.  This is available with measurements as slim as 5.5" between the top of the hand rail and the bottom of the trolling motor arm.  Feel free to contact us about this option.  Thank you.

EASILY ADJUSTABLE ON ALL 3 AXIS'S

Our innovative design is the only mount which allows you to position your unit along any position on its horizontal, vertical, and radial axis!  Further details listed below:

Horizontal Adjustment

The arm of the mount is able to adjust to any angle between 0 and 180°.  The arm is held in place by a pressure sensitive clamp which allows it to move freely when enough pressure is applied on it, yet stay locked in placed when it is holding the trolling motor arm.  This means that when fishing you can remove your trolling motor unit and push on the mount to lay it down, making it great for storage purposes!  When you are ready, simply lift up on the mount to lock your trolling motor in place, and prepare to cruise along the water with peace of mind!

Vertical (Height) and Radial Adjustment

Our innovative design not only allows you to adjust to virtually any angle to accommodate various styles of boats, but it also allows you to positions the unit to the EXACT height required for proper installation of the unit.  The outer stabilizer tube can be positioned to any height along the solid aluminum rod and can rotate 360° to ensure that the trolling motor arm fits precisely in the synthetic V-Channel.  Once you have the unit positioned vertically and radially it can be locked in place by tightening the 2 set screws.

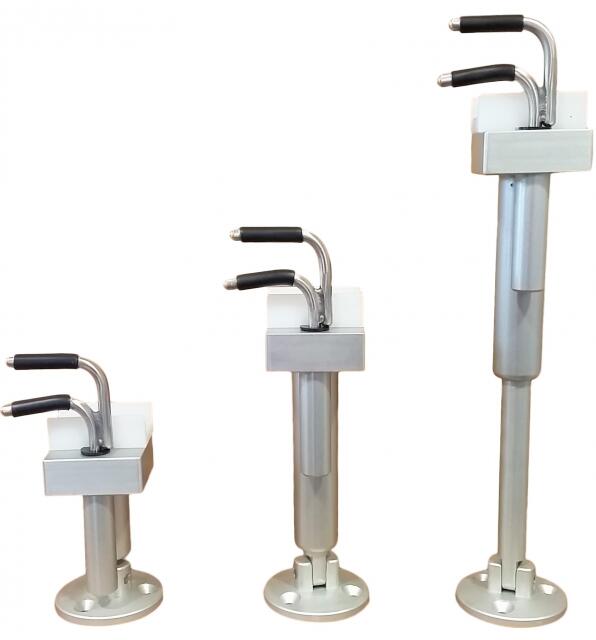

Three different mounting sizes are available.  Measurements are from the bottom of the round mounting plate to the bottom of the trolling motor arm.

1. Small Stabilizer Mount:                 Adjusts for any height from 6" to 8"
2. Medium Stabilizer Mount:            Adjusts for any height from 8" to 12"
3. Large Stabilizer Mount:                  Adjusts for any height from 12" to 17"
