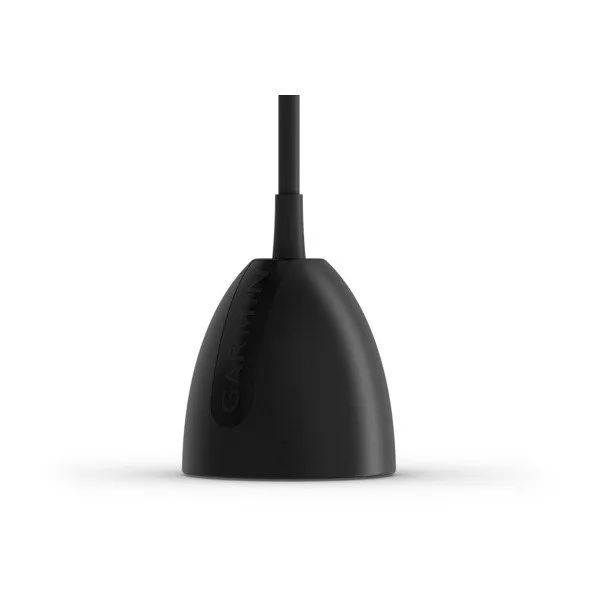

Garmin Ice GT10HN-IF Transducer - 010-12677-00
Garmin Ice GT10HN-IF Transducer - 010-12677-00
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
10091 Central Ave NE
Blaine MN 55434
United States
Fish-Lectronics - 1109 Cty. Rd. 10 - PH# 763.571.1277
1109 County Road 10
Minneapolis MN 55432
United States
The GT10HN-IF ice fishing transducer is perfect for fishermen who want clear definition under the ice with excellent target separation. The narrow, 7-16 degree beam angle provides precise fish and jig detection. The 8-pin transducer features high-narrow CHIRP traditional sonar and has a power rating of 500 W. Its shape and beam widths have been optimized for ice fishing, and it features a silicone-coated cable that remains flexible in harsh winter conditions. Includes a 8-pin to 4-pin transducer adapter cable, foam float and grommet.
| TRANSDUCER FREQUENCY | CHIRP High Narrow (130-300 kHz) |
|---|---|
| TRANSDUCER POWER | 500 W |
| TRANSDUCER BEAMWIDTH | 16°-7° |
| TRANSDUCER MAXIMUM DEPTH | 800 ft. freshwater |
| TRANSDUCER CABLE LENGTH | 8 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE | Depth |
| TRANSDUCER NUMBER OF PINS | 8 |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES | N/A |
