Humminbird
Humminbird XNT 9 HW MDI 75 T - HELIX 7/8 MEGA DI, DUAL SPECTRUM CHIRP W/ TEMP TRANSOM TRANSDUCER 710295-1
Quantity:
Pickup currently unavailable at Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
Humminbird XNT 9 HW MDI 75 T - HELIX 7/8 MEGA DI, DUAL SPECTRUM CHIRP W/ TEMP TRANSOM TRANSDUCER 710295-1
Thorne Bros - 10091 Central Ave. - PH# 763.572.3782
Pickup currently unavailable
10091 Central Ave NE
Blaine MN 55434
United States
Fish-Lectronics - 1109 Cty. Rd. 10 - PH# 763.571.1277
Pickup available, usually ready in 24 hours
1109 County Road 10
Minneapolis MN 55432
United States
XNT 9 HW MDI 75 T 710295-1:

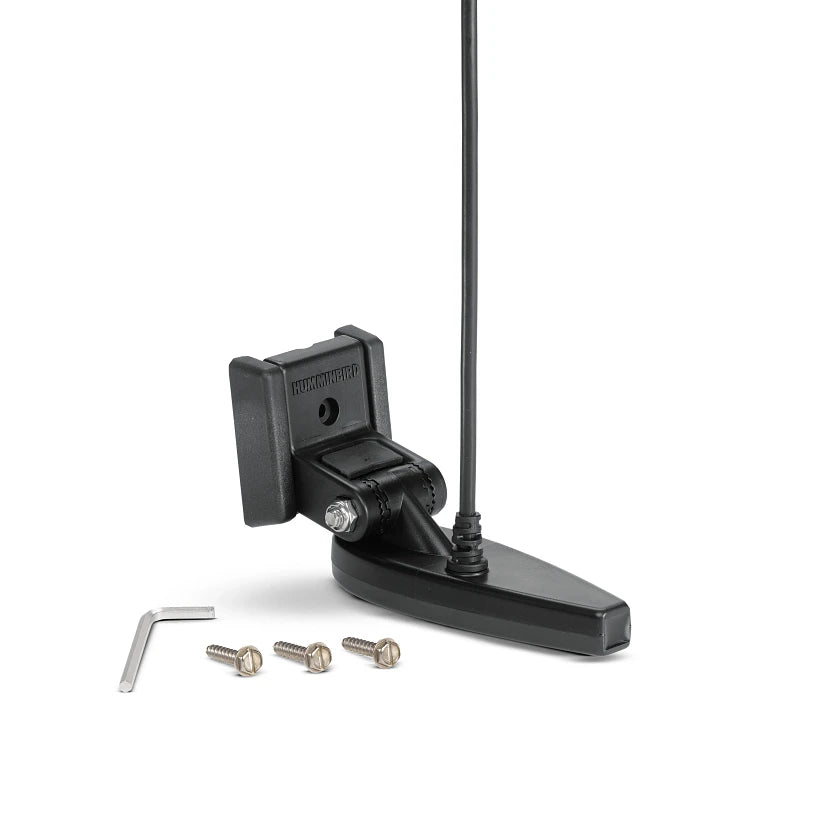

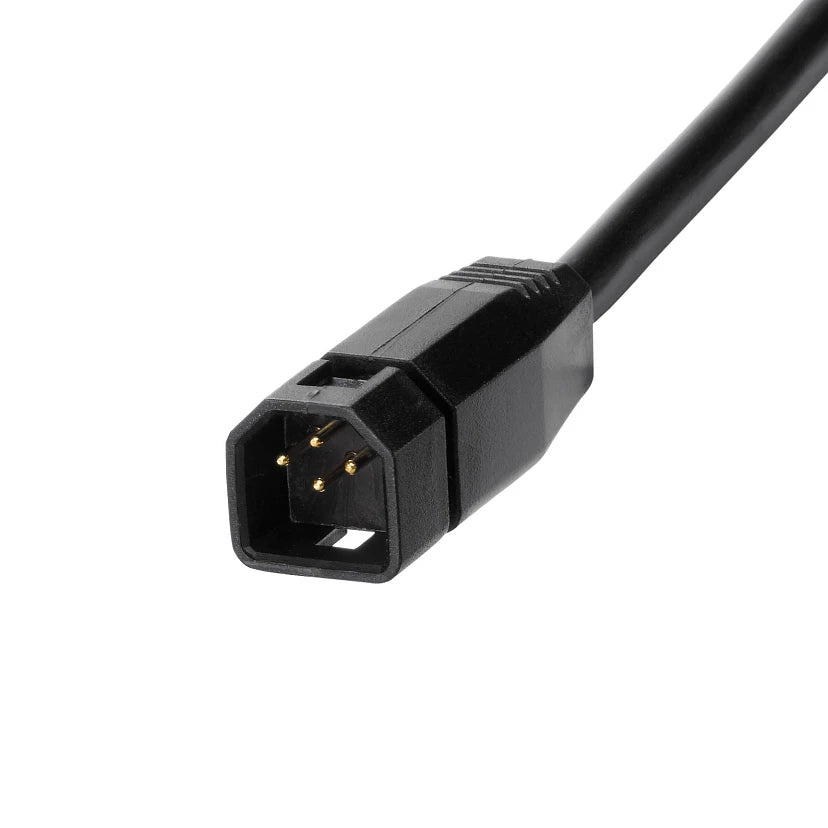

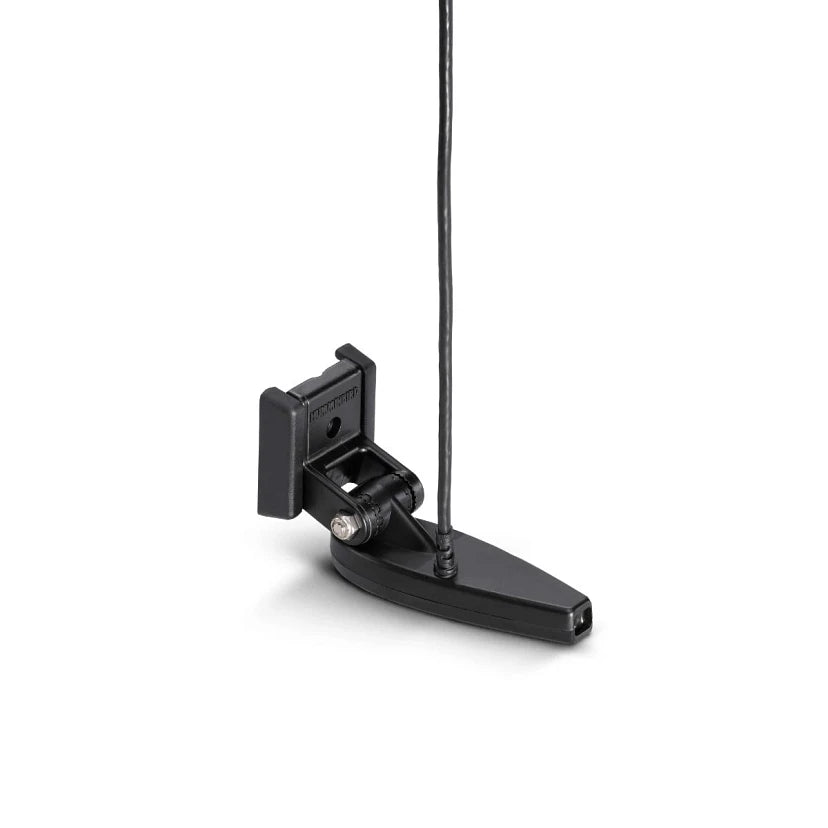

MEGA Down Imaging Transom Mount Transducer supports MEGA Imaging/ 455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20’ cable.
- Compatible with: HELIX 7 CHIRP MEGA DI GPS G3, HELIX 7 CHIRP MEGA DI GPS G3N, HELIX 7 MDI GPS G4N, HELIX 8 CHIRP MEGA DI GPS G3N, HELIX 8 CHIRP MEGA DI GPS G4N
- Cable Length: 20 Feet
- Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP Max Depth: 1200ft (365m)
- MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 350ft (107m), MEGA DI: 1075-1150 kHz - 125ft (38m)
