Humminbird XNT 9 HW T - HELIX DUAL SPECTRUM CHIRP W/ TEMP TRANSOM TRANSDUCER 710274-1

XNT 9 HW T 710274-1:

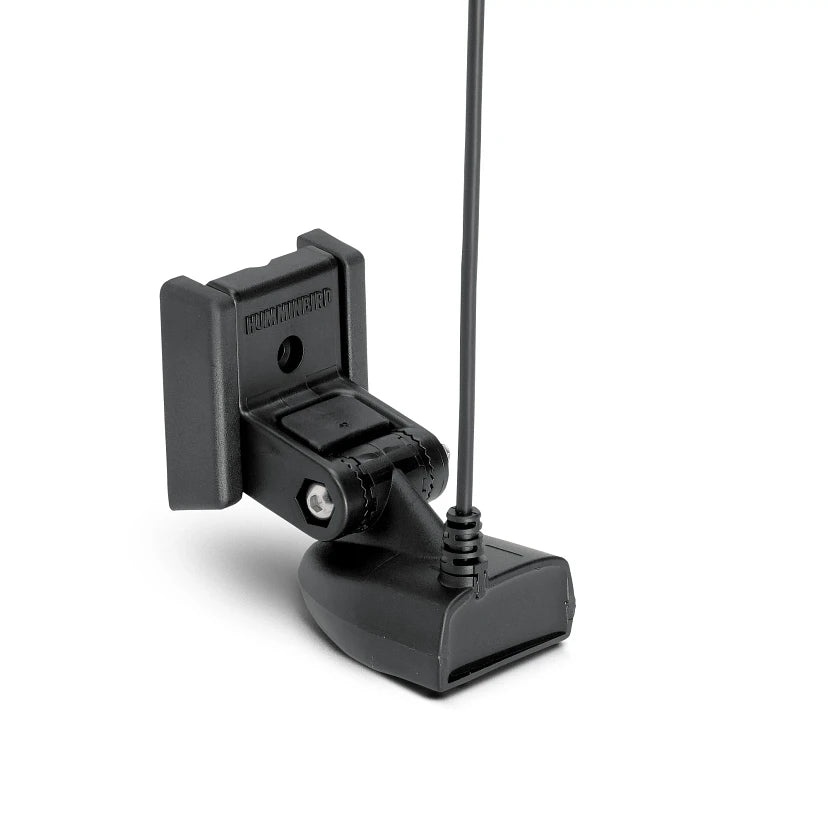

Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature

• Compatible with: HELIX 5 CHIRP G2/G3 – GPS-equipped models only, HELIX 7 CHIRP G2/G3/G4 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N/G4N – All models, HELIX 8 CHIRP G3N/ G4N – All models, HELIX 9 CHIRP G2N/G3N/G4N – All models, HELIX 10 CHIRP G2N/G3N/G4N – All models, HELIX 12 CHIRP G2N/G3N/G4N – All models, ICE HELIX CHIRP G2/G3 and newer – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.

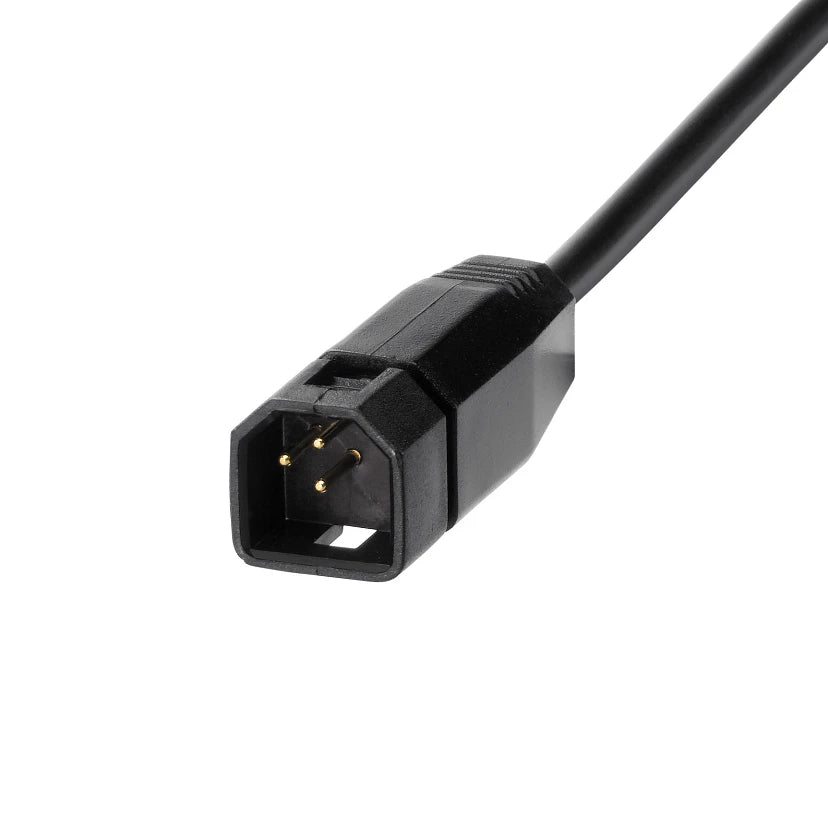

• Cable Length: 20 Feet

• This transducer does not support Side Imaging™ or Down Imaging™.

• Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz

• Dual Spectrum CHIRP- Max Depth: 1200ft (365m)
