- Zinc-coated double U-bolt base accommodates rails from .75" to 1" in diameter
- Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

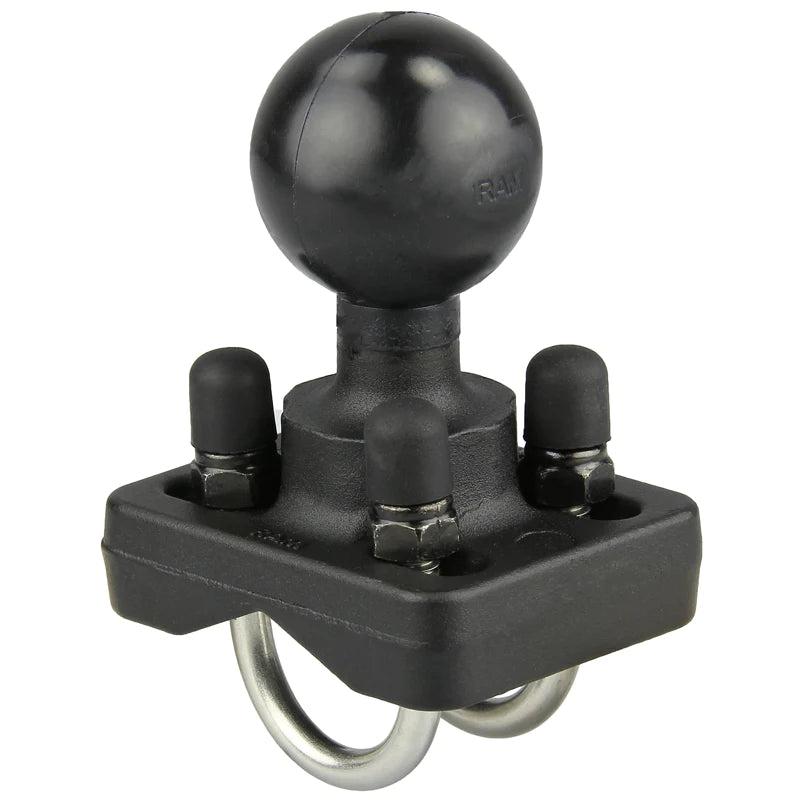

The RAM-235-2U consists of a double u-bolt base with 1.5" diameter ball and two zinc-coated u-bolts. The double u-bolt base will accommodate rails from .75" to 1" in diameter.
hardware included
(2) 1/4"-20 U-Bolts for .75" - 1" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
clamp range
.75" - 1" diameter
ball size
C Size (1.5")
weight capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials
Marine-grade aluminum
packaging type
Poly Bag
Weight
0.5 lb
